Essemtec - Tarantula - State of the art technology, easily integrated in any line. Wide range of dispensing applications such as Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping and more. With it's large board size capability, easily adaptive for your application and ability to hold up to 3 freely choice dispensing valves it is the most versatile beast on the market for unlimited applications.

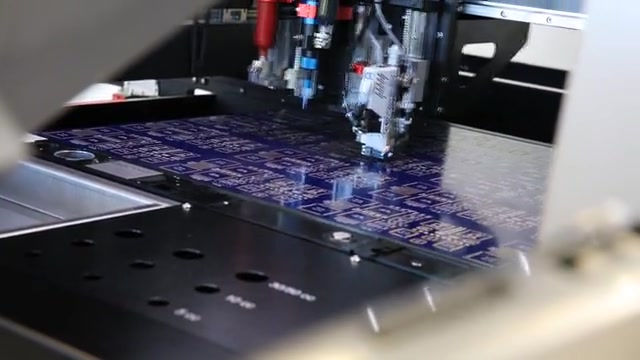

High Speed Jetting and Dispensing Tarantula

    • Only 2 m² production floor
    • Board size up to 560x610 mm (opt 1800x610mm)
    • Monitors size and weight of dispensed dots
    • Up to 145’000 dots/h (with Piezo Jet Valve)

    • Linear motor drive - High accuracy: 40 µm (3σ) at full speed
    • Up to 3 dispensing valves can be mounted at the same time
    • 3D applications - Mapping of heights using laser technology

    • Mineral cast chassis - Stability at different temperature levels
    • Job and quality management integrated
    • Optional cleanroom - ISO 7 (class 10 000)
